BMT 50100AHD/ 60160SD/ 60220SD/ 80160SD/ 80220SD/ 80300SD

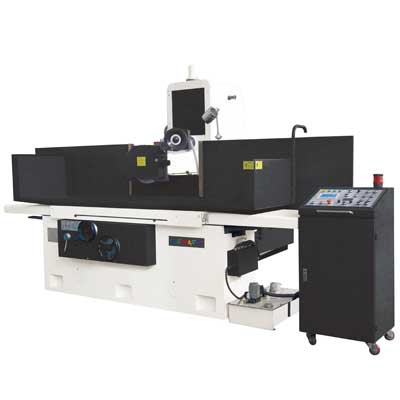

BMT 50100AHD

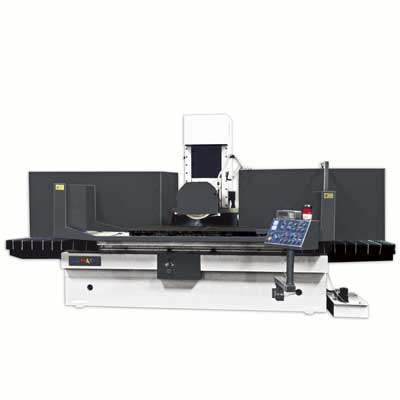

BMT 80160SD



BMT 50100AHD/ 60160SD/ 60220SD/ 80160SD/ 80220SD/ 80300SD
FEATURES:
Longitudinal: One flat and one Vee way
Cross: 2 Vee ways, coated with turcite-B
Heavy duty & high precision spindle
Ø355 mm grinding wheel
7.5 kw spindle motor
Automatic lubrication system
STANDARD ACCESSORIES:
Grinding wheel
Wheel balancing arbor
Wheel flange
Wheel flange extractor
Wheel balancing stand w / lever
Coolant system
Halogen lamp
Diamond dresser with stand
Levelling screw and pads
tool box & tools
OPTIONAL ACCESSORIES:
Permanent magnetic chucks
Electro magnetic chucks
Parallel dresser (Lever type for manual models)
Parallel dresser (leadscrew type for auto. models)
Parallel dresser (Hydraulic type for auto. models)
Dust collector
Coolant and dust collector
Coolant system and magnetic separator
Coolant system and paper filter system
Coolant system, magnetic separator and paper filter system



 SPECIFICATION :
 MODEL BMT 50100AHD BMT 60160SD BMT 60220SD
 TABLE SIZE (mm) 500 x 1000 610 x 1600 610 x 2200
 MAX. TRAVELS (X & Y) (mm) 500 x 1000 720 x 1840 720 x 2440
 MAX. DISTANCE FROM SPINDLE
 CENTER TO TABLE (mm)
600 820
 STANDARD MAGNETIC CHUCK SIZE (mm) 500 x 1000 600 x 1500 600 x 2000
 LONGITUDINAL FEED 5~25 m/min
 CROSS FEED
 AUTO. FEEDS 0.5~20 mm/t 1~30 mm/t
 RAPID SPEED 1.25 m/min 0.05 m/min
 MPG FEED RATE 0.02 mm/graguation 0.005 mm/graguation
 WHEELHEAD VERTICAL MOVEMENT
 AUTO. FEEDS 0.005~0.04 mm/t 0.005~0.05 mm/t
 RAPID SPEED 230 m/min 0.05~2 mm/min
 MPG FEED RATE 0.002 mm/gragustion 0.005 mm/gragustion
 GRINDING WHEEL
 SPEED 1450 RPM(50 HZ)
1740 RPM (60 HZ)
960 RPM
 SIZE 355 x (20~50) x 127 mm 500 x 75 x 35 mm

 MOTOR OF SPINDLE 7.5 kw 18.5 kw
 MAX. TABLE LOAD
 (INCLUDE MAGNETIC CHUCK)
700 kgs 1230 kgs 1690 kgs
 TOTAL RATED POWER 12 kw 28.5 kw
 HEIGHT OF MACHINE 2390 mm 2700 mm
 FLOOR SPACE (mm) 4700 x 2200 4700 x 3000 6000 x 3000
 GROSS WEIGHT 5500 kgs 8500 kgs 9500 kgs
 *The above specitications are subject to change without prior notice.



 SPECIFICATION :
 MODEL BMT 80160SD BMT 80220SD BMT 80300SD
 TABLE SIZE (mm) 810 x 1600 810 x 2200 810 x 3000
 MAX. TRAVELS (X & Y) (mm) 920 x 1840 920 x 2440 920 x 3300
 MAX. DISTANCE FROM SPINDLE
 CENTER TO TABLE (mm)
820
 STANDARD MAGNETIC CHUCK SIZE (mm) 800 x 1500 800 x 2000 800 x 3000
 LONGITUDINAL FEED 5~25 m/min
 CROSS FEED
 AUTO. FEEDS 1~30 mm/t
 RAPID SPEED 0.05 m/min
 MPG FEED RATE 0.005 mm/graguation
 WHEELHEAD VERTICAL MOVEMENT
 AUTO. FEEDS 0.005~0.05 mm/t
 RAPID SPEED 0.05~2 mm/min
 MPG FEED RATE 0.005 mm/gragustion
 GRINDING WHEEL
 SPEED 960 RPM
 SIZE 500 x 75 x 305 mm

 MOTOR OF SPINDLE 18.5 kw
 MAX. TABLE LOAD
 (INCLUDE MAGNETIC CHUCK)
1630 kgs 2240 kgs 3060 kgs
 TOTAL RATED POWER 28.5 kw

31 kw

 HEIGHT OF MACHINE 2700 mm
 FLOOR SPACE (mm) 4700 x 3500 6000 x 3500 8200 x 3600
 GROSS WEIGHT 10000 kgs 11500 kgs 14000 kgs
 *The above specifications are subject to change without prior notice.
