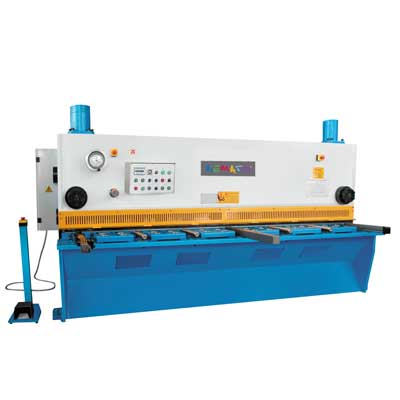

QC11Y
QC11Y
|
SPECIFICATION: |
|
MODEL |
QC11Y-6 x
2500 |
QC11Y-6 x
3100 |
QC11Y-6 x
4000 |
QC11Y-6 x
6000 |
QC11Y-8 x
2500 |
QC11Y-8 x
3100 |
QC11Y-8 x
4000 |
QC11Y-8 x
6000
|
|
MILD STEEL(45kg/mm2) |
6 |
6 |
6 |
6 |
8 |
8 |
8 |
8 |
|
CUTTING LENGTH (mm) |
2500 |
3100 |
4000 |
6000 |
2500 |
3100 |
4000 |
6000 |
|
STROKE PER MINUTE |
10~45 |
8~45 |
7~45 |
5~30 |
10~45 |
8~45 |
7~45 |
5~30 |
|
BACK GAUGE RANGE (mm) |
750 |
750 |
750 |
750 |
750 |
750 |
750 |
750 |
|
RAKE ANGLE ADJUSTMENT(°) |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
|
DEPTH OF
THROAT (mm) |
70 |
70 |
70 |
100 |
100 |
100 |
100 |
100 |
|
MOTOR POWER (kw) |
7.5 |
7.5 |
7.5 |
15 |
11 |
11 |
11 |
22 |
|
WEIGHT OF MACHINE (kg) |
4850 |
5600 |
7050 |
20000 |
5300 |
6100 |
7700 |
22000 |
DIMENSION
L x W x H(mm) |
3240 x 1770 x 1980 |
3790 x 1800 x 2030 |
4740 x 1805 x 2110 |
6900 x 2170 x 2750 |
3240 x 1770 x 2010 |
3800 x 1800 x 2060 |
4750 x 1805 x 2140 |
6900 x 2200 x 2800 |
|
*The above specitications are subject to change without prior
notice. |
|
SPECIFICATION: |
|
MODEL |
QC11Y-10 x 2500 |
QC11Y-10 x 3100 |
QC11Y-10 x 4000 |
QC11Y-12 x 2500 |
QC11Y-12 x 3100 |
QC11Y-12 x 4000 |
QC11Y-12 x 6000 |
|
MILD STEEL (45kg/mm2) |
10 |
10 |
10 |
12 |
12 |
12 |
12 |
|
CUTTING LENGTH (mm) |
2500 |
3100 |
4000 |
2500 |
3100 |
4000 |
6000 |
|
STROKE PER MINUTE |
10~35 |
8~35 |
6~35 |
10~35 |
8~35 |
6~35 |
4~12 |
|
BACK GAUGE RANGE (mm) |
750 |
750 |
750 |
1000 |
1000 |
1000 |
1000 |
|
RAKE ANGLE ADJUSTMENT (°) |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
|
DEPTH OF
THROAT (mm) |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
MOTOR POWER(kw) |
11 |
11 |
11 |
15 |
15 |
15 |
30 |
|
WEIGHT OF MACHINE (kg) |
6600 |
7300 |
9200 |
8000 |
9000 |
11600 |
29000 |
DIMENSION
L x W x H(mm) |
3310 x1850 x 2160 |
3680 x 1870 x 2170 |
4810 x 1920 x 2350 |
3310 x 2180 x 2270 |
3860 x 2200 x 2335 |
4810 x 2200 x 2495 |
6950 x 2350 x 3050 |
|
*The above specitications are subject to change without prior
notice. |
|
SPECIFICATION: |
|
MODEL |
QC11Y-14
x 6000 |
QC11Y-16
x 2500 |
QC11Y-16
x 3100 |
QC11Y-16
x 4000 |
QC11Y-16
x 6000 |
|
MILD STEEL (45kg/mm2) |
14 |
16 |
16 |
16 |
16 |
|
CUTTING LENGTH (mm) |
6000 |
2500 |
3100 |
4000 |
6000 |
|
STROKE PER MINUTE |
4~12 |
8~30 |
7~30 |
6~30 |
4~12 |
|
BACK GAUGE RANGE (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
|
RAKE ANGLE ADJUSTMENT (°) |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
0.5~2.5 |
|
DEPTH OF
THROAT (mm) |
100 |
100 |
100 |
100 |
100 |
|
MOTOR POWER (kw) |
30 |
30 |
30 |
30 |
37 |
|
WEIGHT OF MACHINE (kg) |
30000 |
9600 |
12500 |
15200 |
36000 |
DIMENSION
L x W x H(mm) |
7000 x 2350 x3050 |
3350 x 2190 x 2350 |
3900 x 2190 x 2430 |
4850 x 2430 x 2575 |
7000 x 2400 x 3100 |
|
*The above specitications are subject to change without prior
notice. |
|
SPECIFICATION: |
|
MODEL |
QC11Y-20 x 2500 |
QC11Y-20 x 3100 |
QC11Y-20 x 4000 |
QC11Y-20 x 6000 |
QC11Y-25 x 2500 |
QC11Y-25 x 3100 |
QC11Y-25 x 4000 |
|
MILD STEEL (45kg/mm2) |
20 |
20 |
20 |
20 |
25 |
25 |
25 |
|
CUTTING LENGTH (mm) |
2500 |
3100 |
4000 |
6000 |
2500 |
3100 |
4000 |
|
STROKE PER MINUTE |
8~30 |
7~30 |
6~30 |
3~10 |
5~30 |
4~30 |
3~30 |
|
BACK GAUGE RANGE (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
RAKE ANGLE ADJUSTMENT (°) |
0.5~3.5 |
0.5~3.5 |
0.5~3.5 |
0.5~3.5 |
0.5~3.5 |
0.5~3.5 |
0.5~3.5 |
|
DEPTH OF
THROAT (mm) |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
MOTOR POWER (kw) |
30 |
30 |
30 |
60 |
37 |
37 |
37 |
|
WEIGHT OF MACHINE (kg) |
17000 |
19000 |
21000 |
50000 |
22000 |
26000 |
28000 |
DIMENSION
L x W x H(mm) |
3385 x 2140 x 2665 |
3935 x2260 x 3030 |
4935 x2330 x 3045 |
7050 x 2600 x 3200 |
3420 x 2555 x 3150 |
3970 x 2230 x 3160 |
4920 x 2250 x 3300 |
|
*The above specitications are subject to change without prior
notice. |
|
|
