CC 300 Hidro-pneumatic riveting

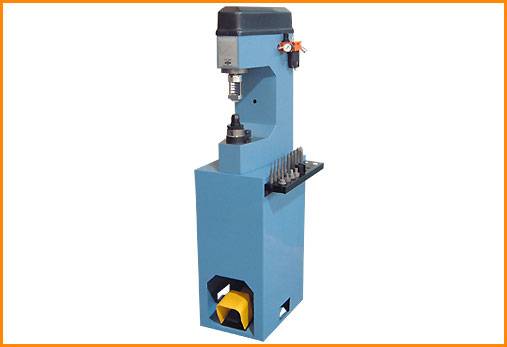

HYDRO-PNEUMATIC RIVETING MACHINE FOR BRAKE SHOE
The hydro-pneumatic riveting machine CC 300 allows to rivet and derivet the brake linings on every type of brake shoe. The heavy duty steel structure gives excellent qualities of strenght and rigidity at the machine, while the combined hydraulic and pneumatic acting system assures an high working force using a low quantity of compressed air which is treated by a filter-lubricator group complete of pressure regulator and an easy reading manometer.






Specifications
Rivets diameter 3-12 mm
Working pressure 1-8 bar
Maximum punch force 5200 Kg
Maximum punch stroke 40 mm
Dimensions (LxLxH) 350x490x1520 mm
Weight 134 Kg










For further information

Download Brochure
