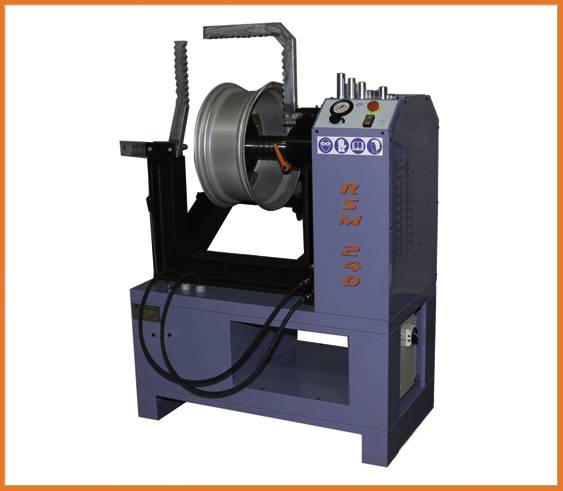

RSM 024 Rim straightening machine

RIM STRAIGHTENING MACHINE AND LATHE
RSM 240 is designed and manufactured to repair by straightening all kind of steel, aluminium and alloy wheels with range diameter between 13" and 24".The system uses an easy to handle hydraulic cylinder actuated by an hydraulic unit that, conveniently positioned, pushes on the damaged part of the rim taking it back to the original shape. Such operation is ma40de easier with the aid of a wide set of shaped punches that perfectly lean to the different rim profiles. Furthermore the hydraulic cylinder is provided by a pressure regulation system with manometer (PRP100) which allows the adjustment of push force in accordance to the material on work.
RSM 240 moreover is equipped with a lathe unit that allows, after the wheel straightening operation, to remove dents on the edges. Useful accessories among which the adjustable spindle speed with
digital readout (VRV050) or the dial gauge for alignment (CPR150) are available according to every kind of need.









Specifications
Application range 13” – 24”
Working pressure 140 bar
Max punch force 3950 Kg
Hydraulic unit motor 0,75 kW-140 rpm
Dimensions (LxLxH) 1250x860x1250 mm
Weight 270 Kg










For further information

Download Brochure
