SPECIFICATION: |
|
MODEL |

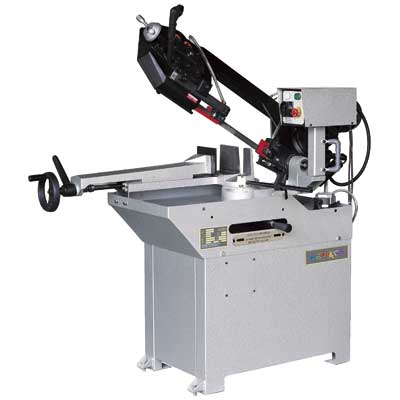

BMT 260SL |
BMT
260SLV |
|
CAPACITY 90° |
227 mm
220 X 220mm
260 x 110 mm |
|
CAPACITY 45° |
150
mm
145 x 145 mm
200 x 125 mm |
|
CAPACITY 60 ° |
90
mm
85 x 85 mm |
|
BLADE SIZE |
27 x 0.9 x 2460 mm |
|
BLADE SPEED |
50HZ, 4P, 72m/min / 8P, 36 m/min |
Variable speed 20~85 m/min |
|
MOTOR |
1.5 HP (1.1kw), 4P, 1430 RPM |
2 HP (1.5kw), DC motor-220V or 400V |
|
PACKING SIZE |
1549 x 737 x 921mm (61" x 29" x 36.2"-37cu.ft) |
|
N.W./ G.W. |
216 / 250 kgs |
|
CONTAINER LOADS |
22 sets/ 20' , 46 sets/ 40' |
|
*The above specifications are subject to change without prior
notice. |
