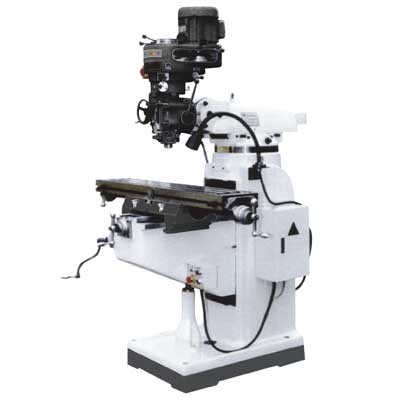

BMT 15MJ/ 15VJ


BMT 15MJ



BMT 15MJ/ 15VJ



 SPECIFICATION:
 MODEL BMT 15MJ / 15VJ
 TABLE SIZE 230 x 1246mm
 LONG TRAVEL 840mm
 CROSS TRAVEL 305mm
 VETICAL TRAVEL 400mm
 T-SLOT NO. x SIZE 3 x 16
 RAM TRAVEL 312mm
 DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE 0~415mm
 SPINDLE HOLE TAPER NT40
 SPINDLE TRAVEL 127mm
 SPINDLE SPEED 16 steps; 50HZ: 65~4500RPM, 60HZ: 80~5440RPM-BMT 15MJ
Variable speed: 65~4500RPM-BMT 15VJ
 AUTO. QUILL FEED 0.04/ 0.08/ 0.15 mm/rev.
 SPINDLE MOTOR 2.25kw/ 3HP
 HEAD SWIVEL 90°
 HEAD TILTING 45°
 PACKING DIMENSION ONE MILLER PER CASE 1400 x 1476 x 203mm
TWO MILLER PER CASE 1450 x 1570 x 2080mm
THREE MILLER PER CASE 1450 x 2180 x 2080mm
 GROSS WEIGHT/ SET 1100kgs
* The above specifications are subject to change without prior notice.
