SPECIFICATION : |
|

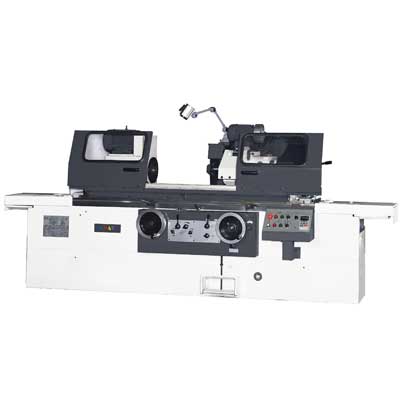

MODEL |
BMT 32100UH / BMT 32150UH |
BMT 2050UH / BMT 2075UH |
|
GENERAL
CAPACITY |
|
DISTANCE BETWEEN CENTERS |
1000 mm / 1500 mm |
500 / 750 mm |
|
CENTER HEIGHT |
180 mm |
135 mm |
|
DIA. GROUND (O.D.) |
8~320 mm |
5~200 mm |
|
DIA. GROUND (I.D.) |
3~100 mm |
25~100 mm |
|
MAX. LENGTH GROUND (O.D.) |
1000 mm / 1500 mm |
500 mm / 750 mm |
|
MAX. LENGTH GROUND (I.D.) |
125 mm |
100 mm |
|
MAX. WEIGHT OF WORK PIECE |
150 kgs |
100 kgs |
|
WORKHEAD |
|
SWIVELLING ANGLE |
+90° |
|
SPINDLE TAPER |
4 |
|
SPINDLE SPEED |
Variable speed, 25~220 RPM, Inverter driven |
Variable speed, 25~380 RPM, Inverter driven |
|
WHEELHEAD |
WHEEL SPINDLE SPEED(Wheel
head) |
1670 RPM |
|
WHEELHEAD RAPID STROKE(HYDRAULIC) |
50 mm |
|
MAX. TRVEL |
246 mm |
205 mm |
|
SWIVELLING ANGLE |
±30° |
±10° |
|
MANUAL FEED PER REVOLUTION |
Rough: 2.0 mm / Fine: 0.5mm |
MANUAL FEED PER
GRADUATION |
Rough: 0.01 mm / Fine: 0.0025mm |
|
MAX. DIMENSION OF WHEEL |
400 x 50 x 203 mm (OD x W x ID) |
|
INTERNAL
GRINDING |
SPINDLE SPEED (Internal
grinding) |
10000 RPM |
|
DIMENSION OF WHEEL |
Max.: 50 x 25 x 13 mm
Min.: 17 x 20 x 6 mm |
Max.: 30 x 25 x 10 mm
Min.: 17 x 20 x 6 mm |
|
TABLE |
TABLE TRAVE(PER REVOLUTION
OF HAND WHEEL) |
6 mm |
MAX. SWIVELLING ANGLE
OF TABLE |
Clockwise: 3° |
|
Counter-clockwise: 7° / 6 ° |
Counter-clockwise: 9 ° / 8 ° |
LONGITUDINAL TRAVERSE
SPEED OF TABLE |
0.1~4 m/min |
|
TAILSTOCK |
|
QUILL TAPER |
MT4 |
|
QUILL TRAVEL |
30 mm |
|
MOTOR |
|
WHEELHEAD MOTOR |
5.5 kw |
4 kw |
|
INTERNAL GRINDING MOTOR |
1.1 kw |
|
WORKHEAD MOTOR |
1.5 kw |
0.75 kw |
|
MACHINE |
|
GROSS WEIGHT |
5300 / 6100 kgs |
4100 kgs / 4300 kgs |
|
PACKING DIMENSION |
3380 / 4380 x 2000 x 2050 mm |
2600 / 3000 x 2060 x 2050 mm |
|
*The above specifications are subject to change without prior
notice. |
