| Machine Tools |
| BEMATO |
DRILLING MACHINES
Drilling Machine
Drilling & Milling Machine
Radial Drill
|
| |
|
BMT 35
BMT 35
| BMT 35 |
|

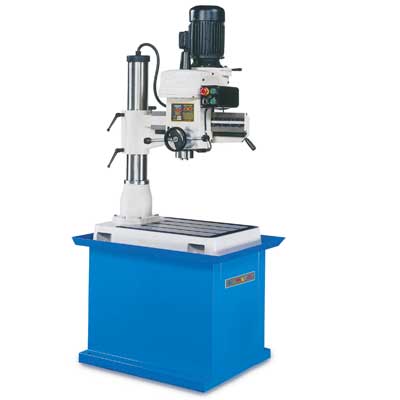

Picture shown with optional stand. |
|
SPECIFICATION
: |
|
MODEL |
BMT 35 |
|
WORKING CAPACITY |
|
IN MILD STEEL |
DRILLING |
32mm |
|
FACE MILL |
76mm |
|
END MILL |
20mm |
|
TAPPING |
16mm |
|
IN LIGHT ALLOY |
32mm |
|
SPINDLE MOTOR |
1.5HP (3Ø) |
|
SPINDLE SPEED |
STANDARD: 60HZ: 340~3000RPM, 50HZ: 300~2600RPM
OPTIONAL: (60HZ: 170~3000RPM , 50HZ: 145~2600RPM) |
|
SPINDLE TAPER |
MT3 |
|
SPINDLE TRAVEL |
130mm |
|
SWING |
460mm |
|
WORKING SURFACE |
550 x 500 mm |
|
CROSS TRAVEL |
380 mm |
|
COLUMN DIA |
Ø115mm |
|
PACKING SIZE |
MACHINE WITH STAND |
762 x 864 x 1143mm |
|
MACHINE W/O STAND |
584 x 864 x 1143mm |
|
STAND |
965 x 800 x 203mm |
|
WEIGHT (N.W./ G.W.) |
250 / 280 kgs (Machine) , 35/ 36 kgs (Stand) |
|
CONTAINER LOAD |
20': 36 sets (With stand) / 52 sets (W/O stand) |
|
*The above specitications are subject to change without
prior notice. |
|
