DRILLING MACHINES
Drilling Machine
Drilling & Milling Machine
Radial Drill
|
| |
|
BMT 360B/ 360BT

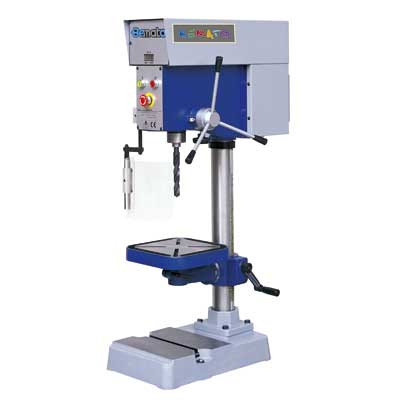

BMT 360B

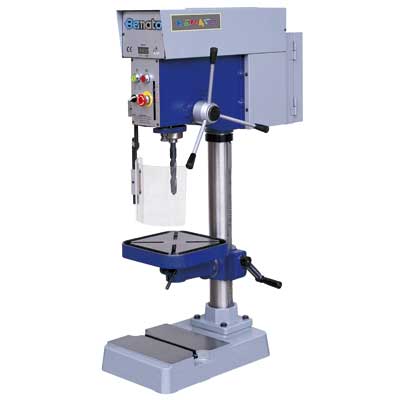

BMT 360BT
| BMT 360B/ 360BT |
BMT 360B: W/ digital speed display
BMT 360BT: W/ digital speed display tapping switch
|
|
SPECIFICATION : |
|
MODEL |
BMT
360B |
BMT
360BT |
|
WORKING CAPACITY |
DRILLING |
20mm |
|
TAPPING |
- |
12mm |
|
SWING |
360mm |
|
SPINDLE SPEED |
390~3000RPM
Variable/ Belt driven |
270~2700RPM
Variable/ Belt driven |
|
SPINDLE TAPER |
MT2 |
|
SPINDLE TRAVEL |
100mm |
|
QUILL DIAMETER |
Ø52mm |
|
COLUMN DIAMETER |
Ø80mm |
|
TABLE SIZE |
T280 x 280mm |
|
BASE SIZE |
500 x 300 x 90mm |
|
SPINDLE NOSE TO TABLE |
430mm |
|
SPINDLE NOSE TO BASE |
660mm |
|
SPINDLE MOTOR |
3/4HP, 4P, 3ph |
3/4HP, 6P, 3ph |
|
MACHINE HEIGHT |
1190mm |
|
NET WEIGHT |
115 kgs |
118 kgs |
|
PACKING DIMENSION |
755 x 350 x 1250 mm |
|
*The above specifications are subject to change without
prior notice. |
|
