H-0465/ H-0565/ H-0665/ H-0865/ H-1065/ H-1365

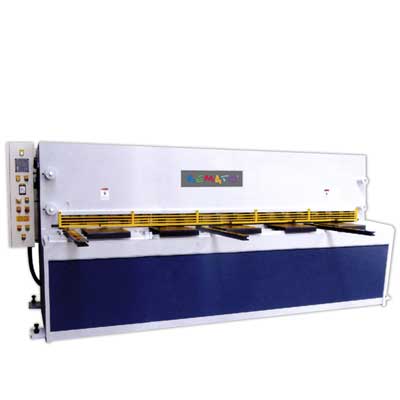

H-1065
| H-0465/ H-0565/
H-0665/ H-0865/ H-1065/ H-1365 |
|
|
SPECIFICATION: |
|
MODEL |
H-0465 |
H-0565 |
H-0665 |
H-0865 |
H-1065 |
H-1365 |
|
CAPACITY |
|
MILD STEEL |
6.5 x 1320mm |
6.5 x 1580mm |
6.5 x 2080mm |
6.5 x 2540mm |
6.5 x 3100mm |
6.5 x 4080mm |
|
STAINLESS |
4.5 x 1320mm |
4.5 x 1580mm |
4.5 x 2080mm |
4.5 x 2540mm |
4.5 x 3100mm |
4.5 x 4080mm |
|
HOLDDOWNS |
|
NUMBERS |
8 |
9 |
11 |
13 |
16 |
18 |
|
PRESSURE |
3.6 TONS |
4.8 TONS |
6 TONS |
13 TONS |
16 TONS |
18 TONS |
|
GAUGE |
|
FRONT |
1000mm |
|
BACK |
600mm |
POWER BACK GAUGE 800 |
|
|
STROKE
PER/ MIN |
30~42SPM |
28~40SPM |
24~36SPM |
22~32SPM |
20~30SPM |
16~24SPM |
|
TOP BLADE |
HYDRAULIC ADJUSTMENT RAKE ANGLE + BLADE CELEARANCW MANUAL
ADJUSTOR |
|
TOP BLADE RAKE ANGLE |
1/2~2° |
|
MOTOR |
15HP |
15HP |
15HP |
20HP |
20HP |
20HP |
|
OIL TANK CAPACITY |
25 Gallons |
30 Gallons |
35 Gallons |
60 Gallons |
80 Gallons |
100 Gallons |
|
SHIPPING WEIGHT |
2600 kgs |
3200 kgs |
3600 kgs |
5300 kgs |
6100 kgs |
7750 kgs |
|
SIZE (APPROX.) |
2250 x 1400 x 1650 mm |
2550 x 1450 x 1650 mm |
3150 x 1850 x 1650 mm |
3550 x 1850 x 1900 mm |
4150 x 1800 x 1900 mm |
5100 x 1900 x 1900 mm |
|
*The above specitications are subject to change without
prior notice. |
|
