V-412/ V-612/ V-812/ V-816/ V-1014/ V-1016/ V-1218/ V-4022

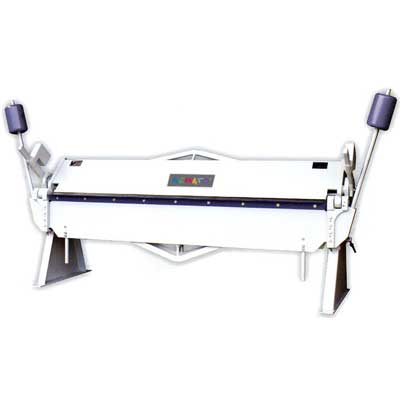

V-812

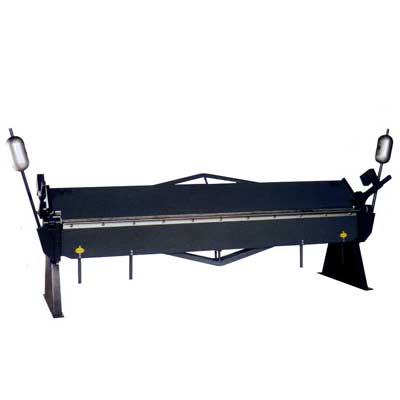

V-1016

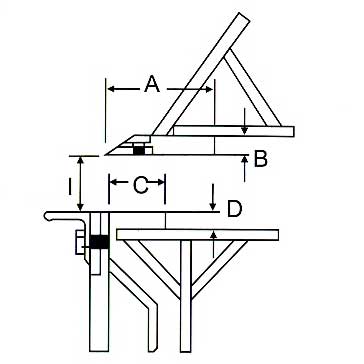

DIMENSION




V-412/ V-612/ V-812/ V-816/ V-1014/ V-1016/ V-1218/ V-4022
HAND BRAKE
 DIMENSION:
 MODEL V-412 V-612 V-812 V-816 V-1014 V-1016 V-1218 V-4022
 A 80mm 80mm 100mm 80mm 100mm 100mm 100mm 100mm
 B 16mm 16mm 25mm 16mm 25mm 20mm 25mm 25mm
 C 50mm 50mm 50mm 50mm 50mm 50mm 50mm 50mm
 D 23mm 23mm 23mm 23mm 23mm 20mm 23mm 23mm
 I 40mm 40mm 53mm 40mm 53mm 53mm 53mm 53mm
*The above specifications are subject to change without prior notice.



 SPECIFICATION:
 MODEL V-412 V-612 V-812 V-816
 BENDING CAPACITY
 LENGTH 1323mm 1855mm 2465mm 2465mm
 MILD STEEL 2.5mm(12GA) 2.5mm(12GA) 2.5mm(12GA) 1.6mm(16GA)
 STAINLESS 1.6mm(16GA) 1.6mm(16GA) 1.6mm(16GA) 1.0mm(20GA)

 BENDING ANGLE 0~135° 0~135° 0~135° 0~135°
 BEAM ADJUSTMENT 25mm 25mm 25mm 25mm
 MIN REVERSE BEND 12mm 12mm 12mm 12mm
 PACKING SIZE 1800 x 850 x 1000mm 2450 x 850 x 1000mm 3120 x 850 x 1000mm 3120 x 850 x 1000mm
 PACKING WEIGHT 600kgs 750kgs 1300kgs 750kgs
*The above specifications are subject to change without prior notice.



 SPECIFICATION :
 MODEL V-1014 V-1016 V-1218 V-4022
 BENDING CAPACITY
 LENGTH 3075mm 3075mm 3700mm 4000mm
 MILD STEEL 2.0mm(14GA) 1.6mm(16GA) 1.2mm(18GA) 0.8mm(22GA)
 STAINLESS 1.2mm(18GA) 1.0mm(20GA) 0.8mm(22GA) 0.6mm(24GA)

 BENDING ANGLE 0~135° 0~135° 0~135° 0~135°
 BEAM ADJUSTMENT 25mm 25mm 25mm 25mm
 MIN REVERSE BEND 12mm 12mm 12mm 12mm
 PACKING SIZE 3700 x 850 x 1000mm 3700 x 850 x 1000mm 4300 x 850 x 1050mm 4700 x 900 x 1200mm
 PACKING WEIGHT 1500kgs 1300kgs 1700kgs 2200kgs
*The above specifications are subject to change without prior notice.
