054 Heavy Duty Boring Fixture

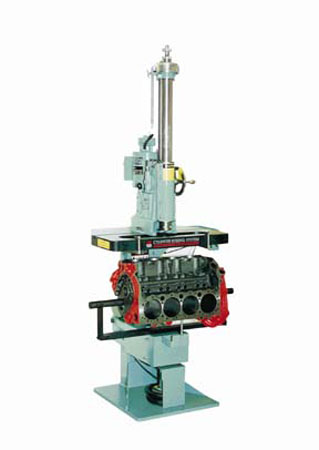

Quick setup for inline, V-6 and V-8 blocks. The 054 mounts
KWIK-WAY
FWSII,
FWII or
FN boring bars for precision boring. The 054
features a massive table, large boring slot, simple, lift
mechanism and positive clamping.
-
Large
Capacity - From small to large automotive blocks
-
Versatile - V-blocks, in-lines, single cylinders, and
marine
-
Permits
rollover of V-blocks without removing from fixture
|
For further information
|
|
| |
Specifications: |
|
|
|
|
| |
Overall Height |
37-1/2" (954mm) |
|
Standard Equipment: |
|
| |
Overall Width |
28" (711mm) |
|
Parallel (2) |
054-1014-38 |
| |
Overall Depth |
26-1/2" (673mm) |
|
Support Bar |
054-1005-20 |
| |
Bore Diameter, Maximum |
5" (127mm) |
|
Anchor Bolt 1/2"-13 |
062-0452-64 |
| |
Support Bar Length |
35" (889mm) |
|
|
|
| |
Load Weight, Maximum |
250 lbs (114kg) |
|
|
|
| |
Total Width of Boring
Plate Opening |
21" (533mm) |
|
Optional Equipment: |
|
| |
Inside Working Height (Centerline
of Support Bar to Bottom of parallel) |
10-3/4" (273mm) |
|
Air Float & Clamp
Assembly |
053-6000-18 |
| |
Shipping Weight |
640 lbs (290.8kg) |
|
Optional
float and clamp assembly adds air float feature to
FL and FN bars when used on 054 boring fixture |
| |
|
|
|
|
|
| |
Ordering Information: |
|
|
054 Engine Dolly |
054-0200-00 |
| |
054 Heavy Duty
Boring Fixture |
054-0000-35 |
|
The perfect
low cost companion for your 054 boring fixture. The
optional dolly permits fast, easy loading of engine
blocks into boring fixture |
| |
|
|
|
|
|
| |
Replacement Parallels - Matched Pairs: |
|
|
Single Cylinder
Mounting Kit for 054 (s/n 2399 and below) |
054-0899-00 |
| |
Standard Replacement
Parallels, 054 (s/n 2900 & up) |
054-1014-38 |
|
Single Cylinder
Mounting Kit for 054 (s/n 2400 and above) |
054-1310-00 |
| |
Standard Replacement
Parallels, 054 (up to s/n 2899) |
054-1014-00 |
|
|
|
| |
Mercury V6 Loop Charge
(1.5"), 054 (s/n 2900 & up) |
054-1014-18 |
|
Block Lifting
Fixture |
054-0600-00 |
| |
Mercury V6 Loop Charge
(1.5"), 054 (up to s/n 2899) |
054-1014-15 |
|
Quickly
load large or small - in-line or V configuration
blocks imply by inserting the round support bar of
the boring fixture through the mains. Lift arm
detaches after cylinder block is in place. |
| |
|
|
|
|
|
| |
|
|
|
054 Adapter Plate,
OMC |
054-1300-00 |
| |
|
|
|
Adapter
plate designed to mount OMC 60 degree V6 outboard
cylinder blocks (150, 175, 200 HP) |
| |
|
|
|
|
|
| |
|
|
|
Special Anchor Bolt for
Van Norman Boring Bar (sold separately) |
062-0905-96 |
| |
|
|
|
|
|
|
