Kwik-Lathe Specifications: |
|
|
Ordering Information: |
|
|
Max Rotor Thickness |
1-5/8" |
|

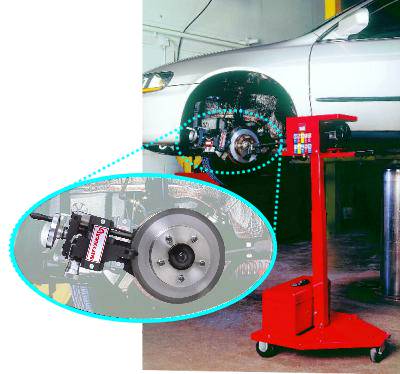

Complete Kwik-Lathe
/ Power Drive
On-The-Car System |
108-0001-15 |
|
Max Rotor Diameter |
13.5" |
|
|
|
|
|
Feed Rate |
.002-.006" |
|
Kwik-Lathe
On-The-Car Lathe (only) |
108-0005-50 |
|
Power Drive Specifications: |
|
|
Power Drive Assembly
(only) |
108-0004-02 |
|
Upper Height |
54-1/4” |
|
|
|
|
Lower Height (24-1/4" w/ Lowering kit
below) |
36-1/4” |
|
Electrical Requirement |
115V/60Hz/1Ph |
|
Overall Width |
25-3/4” |
|
Complete
System Shipping Weight |
180
lbs |
|
Overall Length |
28-3/4” |
|
All
units shown above are 115v/60Hz/1Ph
230V/50-60Hz/1Ph Available upon request |
|
|
|
|
Standard Accessories: |
|
|
|
|
|
Kwik-Mount
Set-up Fixture |
108-1032-00 |
|
Slotted Support Link 3.25" (82.5mm) |
108-1081-10 |
|
Feed
Motor (PFA) 115V |
108-0120-05 |
|
Silencing Belt, Disc |
108-1060-00 |
|
Drive
Belt |
000-0070-64 |
|
Spacer 1" (2) |
108-1026-15 |
|
Tool
Holder, LH 6.13" (156mm) |
108-1003-40 |
|
Spacer 1/2" (2) |
108-1029-00 |
|
Tool
Holder, RH 6.13" (156mm) |
108-1003-50 |
|
Spacer 1/4 (2) |
108-1026-08 |
|
Mounting Adapter (2) |
108-1031-08 |
|
Wrench, Hex 5/32" |
000-0600-62 |
|
Support
Link 2.56" (65mm) |
108-1082-07 |
|
Wrench, Hex 3/32" |
000-0600-46 |
|
Support
Link 3.25" (82.5mm) |
108-1082-10 |
|
GM 11mm Bolt Kit |
108-0035-00 |
|
Slotted
Support Link 2.56" (65mm) |
108-1081-00 |
|
Instruction Video |
108-3050-15 |
|
|
|
Kwik-Lathe - Optional Accessories:
Speed Kits (below) allow for faster setup on the models
listed |
|
Honda/Acura Speed-Mount Adapters |
|
|
Kwik-Lathe Mounting Kits |
|
|
Honda/Acura One Piece Speed Kit
(all models) |
108-0060-00 |
|
Ford Kwik-Wedge Kit
(4X4 F150, Explorer, Range) |
108-0200-00 |
|
Honda
Passport/Isuzu Rodeo Speed Kit (includes Adapters for
front and rear motors) |
108-1025-50 |
|
Ford 4X4 Adapter
(1999 models & newer, F250, F350 |
108-0400-00 |
|
Honda
Odyssey,MDX, Pilot Adapter
(2005 models & newer) |
108-0075-00 |
|
Composite Rotor Clamp Kit
(GM, Ford, Jeep) |
108-1066-00 |
|
Acura
TL Brembo Adapter
(2004 models & newer) |
108-0090-00 |
|
Ford-Dodge 4-Wheel Drive/Van Kit
(required for proper fastening to caliper) |
108-0121-09 |
|
Acura/RL/Legend
Adapter
(2005 models & newer) |
108-0095-00 |
|
Dodge Ram 4X4 Adapter
(2000 models & newer, 2500, 3500) |
108-0500-00 |
|
2-Piece rear rotor Speed Kit (Honda/Acura) |
108-1025-04 |
|
Ford Expedition (front) Adapter |
108-0401-00 |
|
|
|
Power Drive - Optional
Accessories: |
|
|
|
|
|
4X4 Hub
Driver Assembly |
108-1120-01 |
|
Power Drive Lowering Kit (for low-rise lifts) |
108-1156-90 |
