 Kwik-Way 102 Combo Brake Lathe

Single-Pass, Single Speed - Established, Reliable, Profitable

  • Easy, single-cut operation regardless of depth of cut.

  • Produces OEM recommended surface finish every time

  • Saves you time and increases your profits

  • Heavy Duty Cast Iron, Dovetail Way Construction

  • Affordable

  • Your investment is protected with Kwik-Way's Exclusive 5-2-1 Warranty



Ten Good Reasons to Buy a Kwik-Way Model 102 Combination Brake Lathe

  1. A proven history of innovative design and high quality manufacturing from Kwik-Way since 1920.
  2. Solid cast iron Dovetail Way construction assures years of vibration and trouble free operation.
  3. Compact design minimizes floor space requirements.
  4. Positive rake tooling for optimum finish with a single pass, regardless of the depth of cut.
  5. Single spindle speed rate set for optimum surface finish and tool life. Eliminates the need for operator adjustments of feed and speed rates.
  6. Single tool Set-up using only one wrench. No additional hand tools to keep track of.
  7. A tool storage rack is conveniently mounted on the machine for easy access to cones, clamps, and spacers.
  8. Heavy duty Timken bearings assure long term and accurate spindle life.
  9. Three Tooling Packages available for selection to meet your specific shop requirements.
  10. The longest (5 yr) warranty protection of any Brake Lathe in the industry.

All Kwik-Way Brake Lathes Proudly "MADE IN THE USA"



For further information




Brake Lathe Specifications:     Ordering Information:

Rotor Capacity

* 4-24"

   Model 102 "BASIC"
Combo Brake Lathe		 102-0001-05

Drum Capacity

* 6-28"

   (requires purchase of a tooling package to best suit your needs)

Drum Depth

7"



Flywheel Capacity

6-20"



#1 Standard Tooling Kit

104-1000-01        $   930.00

Feed Rates - Rotor

.003"



#2 Deluxe Tooling Kit

104-1000-02        $ 1170.00

Feed Rates - Drum

.005"



#3 Super Tooling Kit

104-1000-03        $ 1380.00

Electrical Requirement

115V/60Hz/1Ph



Shipping Weight

400 lbs



Optional Heavy Duty Bench
(sold separately)

104-0200-00        $   498.00



Shipping Weight with Bench

500 lbs


* May require optional arbor set (102-1069-00) for drums over 14" (356mm) and rotors over 16" (406mm)

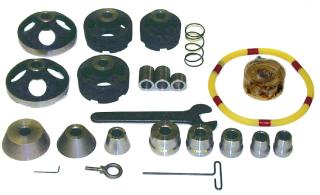

#1 Standard Tooling Kit includes adapters, tooling, and silencers to cover most passenger car and light truck drums and rotors up to 1/2 ton capacity.



#1 Kit Part Number

  104-1000-01

Includes the following items

Bell Clamps (2) 5-13/16" OD (148mm)

101-0235-40



Double Taper Cone #3 2.07"x2.44" (53x62mm)

101-0260-32

Bell Clamps 4" OD (102mm)

109-1011-09

   Double Taper Cone #4 2.45"x2.81" (62x71mm) 101-0260-42

Bell Clamps (2) 4-11/16" OD (119mm)

109-1012-06

   Spacer 1" Long 109-1032-09

Taper Cone #1 1-31/32"x3-7/16" (50x87mm)

109-0236-05

   Spacer 2" Long (2) 109-1033-06

Taper Cone #2 3-5/32"x4-1/8" (80x105mm)

101-0237-02

   Silencing Belt, vented rotor 108-1061-00

Taper Cone #L 1-5/8"x2-3/8" (41x60mm)

101-0243-00

   Silencing Belt, drum 101-0230-10

Double Taper Cone #0 1.30"x1.66" (33x42mm)

101-0260-02

   1-1/2" Arbor Wrench 000-8700-21

Double Taper Cone #1 1.26"x1.72" (35x44mm)

101-0260-12

   Arbor Spring 000-1806-70

Double Taper Cone #2 1.70"x2.06" (43x52mm)

101-0260-22

   Wrench, Hex 3/32" 000-0600-46
      T-Handle Wrench 5/32" 000-0600-66

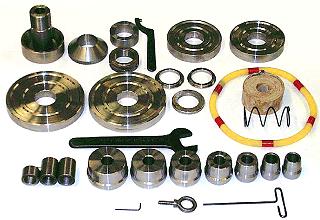

#2 Deluxe Tooling Kit includes adapters, tooling, and silencers to cover most passenger cars and trucks up to 3/4 ton capacity, including a master hubless and composite rotor kit.





#2 Kit Part Number

104-1000-02

Includes the following items

Double Taper Cone #0 1.30"x1.66" (33x42mm)

101-0260-02



Master Hubless and Composite Rotor Adapter Set

102-0900-00

Double Taper Cone #1 1.26"x1.72" (35x44mm)

101-0260-12



Spacer 1" Long

109-1032-09

Double Taper Cone #2 1.70"x2.06" (43x52mm)

101-0260-22



Spacer 2" Long (2)

109-1033-06

Double Taper Cone #3 2.07"x2.44" (53x62mm)

101-0260-32



Silencing Belt, vented rotor

108-1061-00

Double Taper Cone #4 2.45"x2.81" (62x71mm)

101-0260-42



Silencing Belt, drum

101-0230-10

Double Taper Cone #5 2.84"x3.19" (72x81mm)

101-0260-52



1-1/2" Arbor Wrench

000-8700-21

Double Taper Cone #6 3.19"x3.56" (81x90mm)

101-0260-62



Wrench, Hex 3/32"

000-0600-46


T-Handle Wrench 5/32"

000-0600-66

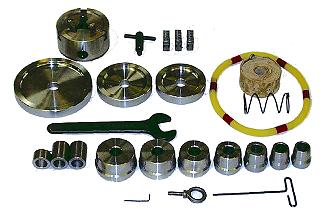

#3 Super Tooling Kit includes adapters, tooling, and silencers for most passenger cars and trucks up to 1 ton capacity including a deluxe Kwik Chuck adapter set for hubless and composite drums and rotors.

  #3 Kit Part Number

104-1000-03

Includes the following items

Double Taper Cone #0 1.30"x1.66" (33x42mm)

101-0260-02



Master Kwik-Chuck Adapter (2.12"-5.75"

102-0800-50

Double Taper Cone #1 1.26"x1.72" (35x44mm)

101-0260-12



Spacer 1" Long

109-1032-09

Double Taper Cone #2 1.70"x2.06" (43x52mm)

101-0260-22



Spacer 2" Long (2)

109-1033-06

Double Taper Cone #3 2.07"x2.44" (53x62mm)

101-0260-32



Silencing Belt, vented rotor

108-1061-00

Double Taper Cone #4 2.45"x2.81" (62x71mm)

101-0260-42



Silencing Belt, drum

101-0230-10

Double Taper Cone #5 2.84"x3.19" (72x81mm)

101-0260-52



1-1/2" Arbor Wrench

000-8700-21

Double Taper Cone #6 3.19"x3.56" (81x90mm)

101-0260-62



Wrench, Hex 3/32"

000-0600-46


T-Handle Wrench 5/32"

000-0600-66
