BMT 1654R/ 1654
BMT 1654R
Direct Drive
| BMT 1654R/ 1654UL |

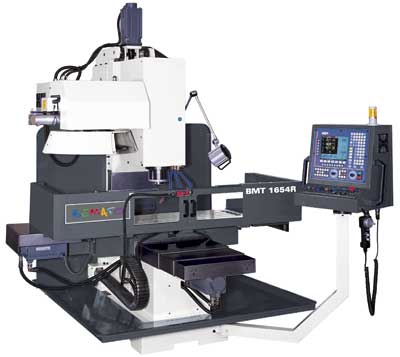

*Picture shown with optional table guard, rear splash guard,
chip tray, metal way covers.
*Picture shown with FAGOR 8055MC-B and remote MPG (Standard)
.
|
FEATURES : |
 |
High tensile and stress relief meehanite casting. |
|
|
Base, column, saddle and table are well ribbed for
the best rigidity. |
|
|
Table, X axis dovetail way and Y, Z axis box ways
are flame hardened and precision ground.
|
|
|
All mating surface of slide ways are coated with
Turcite-B and precision scrapped. |
|
|
Z axis counter weight ensures smooth movement. |
|
|
High precision ball screw on all three axis with
direct driving couping to eliminate backlash.
|
|
|
SPECIFICATION : |
|
MODEL |
BMT 1654R |
BMT 1654UL |
|
TABLE SIZE |
430 x 1370 mm |
|
TABLE LOAD |
1.0 Ton |
|
X, Y, Z TRAVEL |
1000 x 508 x 600 mm |
|
HEAD TYPE |
Rigid head-R |
Turret milling head-UL |
|
SPINDLE NOSE |
BT40 or CAT 40 |
NT40 |
|
SPINDLE SPEED |
50~6000 RPM
(8000, 10000, 12000-Opt.) |
High range :721~4200 RPM
Low range: 60~720 RPM |
|
SPINDLE MOTOR |
10 HP |
5 HP |
|
X, Y, Z BALL SCREW |
Ø40 mm, C5, double nuts |
|
BALL SCREW PITCH |
10 mm |
|
SADDLE SIZE |
320 x 1220 mm |
|
Y SLIDE WAY WIDTH |
450 mm |
|
Z SLIDE WAY WIDTH |
300 mm |
|
SPINDLE CENTER TO COLUMN SURAFCE |
530 mm |
520 mm |
|
SPINDLE TO TABLE |
100~700 mm |
|
RAPID TRAVERSE RATE |
20 m/min |
|
MAX. CUTTING FEED RATE |
5 m/min |
|
TURCITE-B |
3 axis & gibs |
|
X, Y WAY COVER |
metal |
|
Z WAY COVER |
Rubber (Standard), Metal (Opt.) |
|
NET WEIGHT |
3000 kgs |
|
FLOOR SPACE WITH TABLE GUARD |
3500 x 2500 x 2520 mm |
|
*The above specifications are subject to change without
prior notice. |
|
