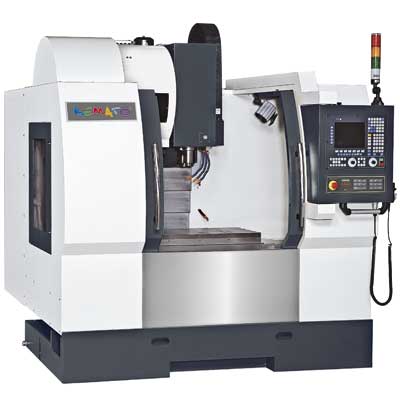

BMT 800M
BMT 800M
| BMT 800M |
|
STANDARD ACCESSORIES : |
 |
10,000 rpm spindle |
|
|
16 tools Armless ATC |
|
|
PL tube light |
|
|
Heat exchanger |
|
|
Coolant system |
|
|
Full guarding |
|
|
Wooden pallet packing |
|
|
OPTIONAL ACCESSORIES : |
|
|
12000 RPM spindle |
|
|
15000 RPM spindle |
|
|
Spindle oil cooler |
|
|
Transformer 15KVA for 380V |
|
|
Chip auger & cart |
|
|
Coolant through spindle |
|
|
16 tool ATC, Arm type |
|
|
20 tool ATC, Arm type |
|
|
Wooden case for less container load (CLC).
|
|
|
|
SPECIFICATION: |
|
MODEL |
BMT
800M |
|
CONTROLLER |
0i mate-MC |
0i-MC |
|
X AXIS TRAVEL |
800 mm |
|
Y AXIS TRAVEL |
460 mm |
|
Z AXIS TRAVEL |
520 mm |
|
SPINDLE NOSE TO TABLE |
100~620 mm |
|
SPINDLE CENTER TO COLUMN SURFACE |
460 mm |
|
SPINDLE TAPER |
BT40 / DIN40 |
|
SPINDLE SPEEDS |
10000 RPM |
|
SPINDLE MOTOR |
β6i / 10000RPM , 5.5 / 7.5kw |
β8i / 10000RPM , 7.5 / 11kw |
|
X, Z AXIS MOTOR |
β8i / 3000 RPM |
|
Z AXIS MOTOR |
β12i / 3000 RPM |
β22i / 2000 RPM |
|
TABLE SIZE |
900 x 450 mm |
|
T-SLOT |
16 x 4 x 95 mm |
|
MAX. TABLE LOAD |
350 kgs |
|
RAPID FEEDRATE X, Y AXIS |
30 m/min |
|
RAPID FEEDRATE Z AXIS |
30 m/min |
|
BALL SCREW (X, Y, Z) |
Ø32mm, P10, Double nuts |
|
ATC |
16T |
|
ATC TYPE |
Armless |
|
MAX. TOOL LENGTH |
7 kgs |
|
MAX. TOOL DIAMETER |
200 mm |
|
MAX. TOOL WEIGHT |
80 |
|
COOLANT PUMP |
1/4 HP |
|
N.W. |
|
|
*The above specifications are subject to change without
prior notice. |
|
