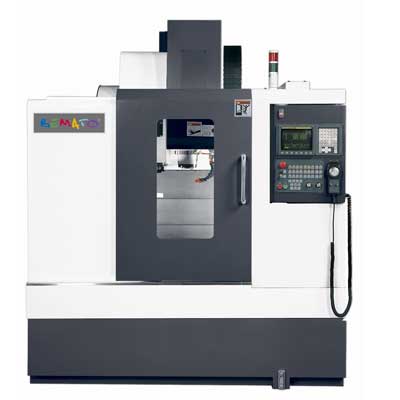

BMT 500S
BMT 500S
|
SPECIFICATION : |
|
MODEL |
BMT
500S |
|
TRAVEL
|
|
X AXIS |
500mm |
|
Y AXIS |
400mm |
|
Z AXIS |
450mm |
|
SPINDLE NOSE TO TABLE |
120~570mm |
|
SPINDLE CENTER TO COLUMN SURFACE |
480mm |
|
COLUMN SURFACE TO TABLE CENTER |
280~680mm |
|
AXIS
FEED |
|
RAPID FEEDRATE X, Y AXIS |
20000mm |
|
RAPID FEEDRATE Z AXIS |
20000mm |
|
CUTTING FEED |
8000mm |
|
BALL SCREW |
D32 x P8 mm |
|
TABLE |
|
TABLE SIZE |
700 x 400 mm |
|
MAX. LOAD PERMISSIBLE |
300kgs |
|
T-SLOT NO./ PITCH/ WIDTH |
3/ 125mm/ 18mm |
|
HEADSTOCK |
|
SPINDLE SPEED |
8000RPM |
|
SPINDLE MOTOR CONT./ 30MIN. |
10HP |
|
SPINDLE DIAMETER |
65mm |
|
SPINDE TAPER |
BT40(STD.), CAT40 & DIN40(OPT.) |
|
ATC SYSTEM |
|
MAX. TOOL DIAMETER |
80 mm |
|
MAX. TOOL LENGTH |
300 mm |
|
MAX. TOOL WEIGHT |
7 kgs |
|
GENERAL
INFORMATION |
|
MACHINE WEIGHTN (APPROX.) |
3800kgs |
|
MACHINE HEIGHT (MAX.) |
2400kgs |
|
FLOOR SPACE (W x D) |
1950 x 2140 mm |
|
POSITIONING |
0.005/ 300mm |
|
REPEATABILITY |
±0.003mm |
|
AIR PRESSURE REQUIRED |
5 bar/ 85psi |
|
*The above specifications are subject to change without
prior notice. |
|
