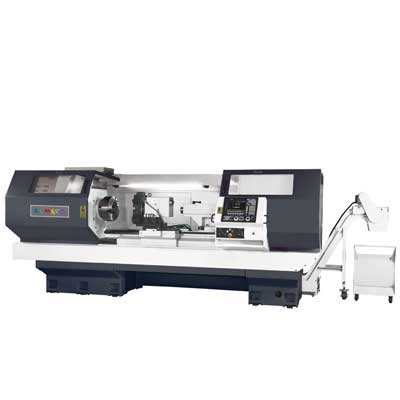

BMT 2680EN




BMT 2660EN/ 2680EN/ 26120EN/ 26160EN/ 3060EN/ 3080EN/ 30120EN/ 30160EN

SPECIFICATION :  MODEL BMT 2660EN/ 2680EN/ 26120EN/ 26160EN BMT 3060EN/ 3080EN/ 30120EN/ 30160EN  CAPACITY  SWING OVER BED 660mm 760mm  SWING OVER CROSS SLIDE 460mm 560mm  SWING IN GAP 960mm 1060mm  DISTANCE BETWEEN CENTER 1500/ 2000/ 3000/ 4000mm  GAP WIDTH FROM FACEPLATE 300mm  HEADSTOCK  SPINDLE NOSE D1-11(A2-11) D1-11(A2-11) A2-11  SPINDLE BORE 105mm 105mm 155mm-OPT.  TAPER SPEEDS LOW RANGE 26~224RPM 26~224RPM 10~150RPM MEDIUM RANGE 225~670RPM 225~670RPM 151~490RPM HIGH RANGE 671~2000RPM 671~2000RPM 491~1400RPM  SPINDLE NOSE BUSH MT8 x MT6 MT8 x MT6 -  TAILSTOCK  QUILL TRAVEL 300mm  QUILL DIAMETER 105mm  QUILL TAPER MT6  BED  BED WIDTH 480mm  MAX. LONGITUDINAL TRAVEL 1190/ 1700/ 2710/ 3730 mm  MAX. TURNING LENGTH 1140/ 1650/ 2660/ 3680 mm  GENERAL INFORMATION  OVERALL LENGTH 4200/ 4700/ 5700/ 6700 mm  OVERALL WIDTH 2250mm  OVERALL HEIGHT 2260mm  NET WEIGHT 4300/ 4800/ 6000/ 7200 mm 4500/ 5000/ 6200/ 7400 mm  GROSS WEIGHT 4900/ 5500/ 6800/ 8200 mm 5100/ 5700/ 7000/ 8400 mm *The above specifications are subject to change without prior notice.
