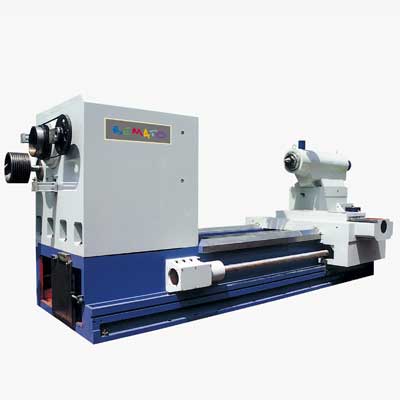

BMT 50~80KAN




BMT 50KAN/ 60KAN/ 70KAN/ 80KAN

SPECIFICATION:  MODEL BMT 50KAN BMT 60KAN BMT 70KAN BMT 80KAN  CAPACITY  CENTER HEIGHT 638mm 765mm 900mm 1020mm  SWING OVER BED 1275mm 1530mm 1800mm 2040mm  SWING OVER CROSS-SLIDE 745mm 1000mm 1275mm 1515mm  DISTANCE BETWEEN CENTERS 1500/ 2000/ 2500/ 3000/ 3500/ 4000/ 5000/ 6000/ 7000/ 8000/ 9000/ 10000/ 12000mm  BED WIDTH 1210mm  HEADSTOCK  SPINDLE NOSE A2-11 A2-15 A2-15 A2-20 A2-20 A2-28 A2-28 A2-32  SPINDLE BORE 153mm 230mm 255mm 318mm 360mm 410mm 535mm 610mm  SPINDLE STEP AUTO. 4 STEPS  SPINDLE SPEEDS 1 RANGE (RPM) 18~130 16~120 13~95 12~85 10~75 8~50 6~40 4~25 2 RANGE (RPM) 35~260 30~200 25~185 23~170 20~150 15~100 12~80 8~50 3 RANGE (RPM) 85~550 70~420 60~400 55~300 50~250 35~200 30~180 20~140 4 RANGE (RPM) 165~1000 150~700 120~600 110~400 95~350 65~300 50~250 40~220  TURRET  STANDARD TOOL POST AUTO 4 WAY POLYGON DISC VDI DISC  NO. OF TOOL STATIONS H4, H6 12 8 or 12  TOOL SHANK CROSS SECTION 32 x 32mm  TOOL SHANK DIAMETER 60mm  TRAVEL  CUTTING FEED RATE X-AXIS: 0.001~250mm Z-AXIS: 0.001~400mm  RAPID TRAVEL X-AXIS: 6M/min. Z-AXIS: 8M/min.  BALL SCREW DIAMETER X-AXIS: 60mm , Z-AXIS: 100mm  TAILSTOCK  QUILL TYPE Built-in type, Rotating tailstock quill  QUILL DIAMETER 280mm  QUILL TRAVEL 250mm  INNER TAPER OF QUILL MT6  MOTOR  MAIN SPINDLE MOTOR 60/ 75 KW (80/ 100HP-OPT.)  X AXIS SERVO MOTOR 5.9KW (8 HP)  Y AXIS SERVO MOTOR 8.2KW (11 HP)  HYDRAULIC PUMP MOTOR 7.5KW (10 HP)  COOLANT PUMP MOTOR 1.05KW (1.4HP)  WEIGHT  2000mm CENTER DISTANCE 26700 KGS 28200 KGS 29700 KGS 31200 KGS  EACH EXTRA 1,000mm WEIGHT 4000 KGS  CONTROLER  CONTROLLER FANUC 18i-STD (Other required-OPT.) *The above specifications are subject to change without prior notice.
